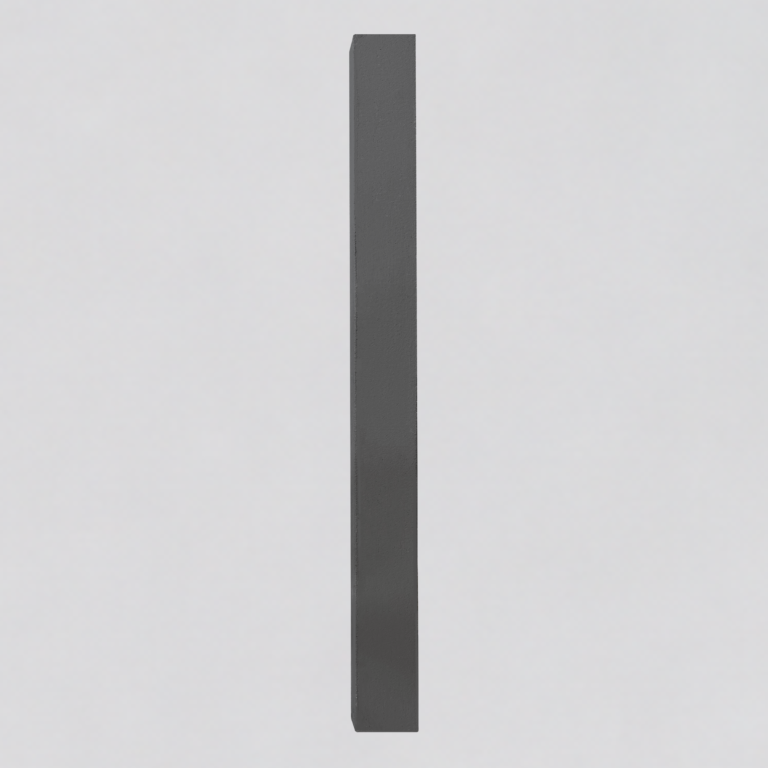

Water Bar / Curb
ANGESEN shower curbs use a blue XPS core with a fixed black waterproof coating. The single-piece, tile-ready curb is available in standard profiles and lengths and can be supplied with backer boards, shower trays, niches, and waterproofing accessories.
Material
Blue XPS core + black waterproof coating
Structure
Packaging
Carton packing
Offset
Tolerance
- Blue XPS core with black waterproof coating
- Single-piece curb construction
- Standard profiles and lengths available
- Compatible with shower trays and backer boards
Product Models and Size Reference
The model data below comes from the ANGESEN product model list. Dimension order can vary by product type, so the original Size field is preserved. Confirm final specifications, stock status, and customization scope through inquiry.
Shower Curb 9 models · 90x100x900, 90x100x1500, 90x100x2400, 115x125x900, 115x125x1500, 115x125x2400, 50x90x900, 50x90x1500
| MODEL | PRODUCT NAME | SIZE |
|---|---|---|
| AGSD0990 | Shower Pan | 90x100x900 |
| AGSD0915 | Shower Curb | 90x100x1500 |
| AGSD0924 | Shower Curb | 90x100x2400 |
| AGSD1190 | Shower Curb | 115x125x900 |
| AGSD1115 | Shower Curb | 115x125x1500 |
Product Selection Guide
XPS Shower Curb Specification Guide for Distributors
What should distributors confirm when sourcing shower curbs or water bars?
A water bar or shower curb is used to define the wet-area boundary, support tile transitions, and connect the shower tray, wall boards, floor waterproofing, and tile finish into one planned bathroom waterproofing system. As China’s professional Tile Backer Board manufacturer, ANGESEN manufactures XPS shower curbs for distributors and importers that need compatible wet-area system components rather than isolated accessory SKUs.
Standard profile and length planning
Standard curb families include 3.5 x 4 in, 4.5 x 5 in, 4.5 x 6 in, and 2 x 3.5 in profiles. Depending on the profile, standard lengths include 36, 48, 60, and 96 in. The selected SKU and drawing remain the order reference.
Single-piece curb construction
The curb is formed as a single XPS piece rather than a joined assembly. Buyers should match width, height, and length to the shower entry, tile build-up, and approved project drawing.
Core and waterproof coating
Standard production uses a blue XPS core with a fixed black waterproof coating. The tile-ready surface can be coordinated with the shower tray, backer board, and project waterproofing details.
System fit with backer board
The XPS curb should be planned with tile backer board, shower tray, waterproofing membrane, pipe collars, corner fabric, and mesh tape so contractors receive a coordinated wet-area system.
Carton and container planning
Curbs are packed in cartons and can be planned with backer boards, shower trays, niches, and accessories. Final carton quantity and mixed-container layout are confirmed against the order mix.
Quote-ready buyer information
Before requesting pricing, buyers should prepare the target profile, width, height, length, quantity by SKU, packaging or pallet preference, destination market, and whether the order is for wholesale stock, OEM, or project supply.
Send your preferred drain types, tray sizes, matching system products, packaging plan, and destination market to request a shower tray quotation.
