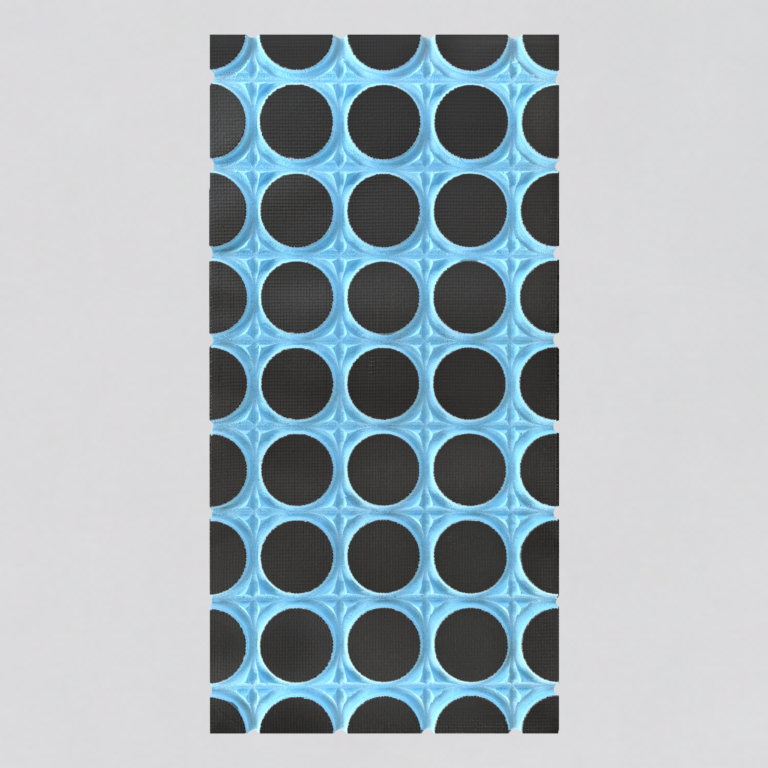

Underfloor Heating Board
Specialized backer board for underfloor heating with pre-routed pipe channels. Excellent thermal insulation (0.030 W/(m·K)) prevents downward heat loss and improves heating efficiency. 30mm standard thickness for water-based systems.
Function
Stress uncoupling, crack prevention
Material
XPS + Polymer composite
Position
Between backer board and finish layer
Best For
Heated floors, large-format tiles
- Features
- Absorbs substrate stress, protects finish
- Prevents tile cracking
- Essential for underfloor heating
- Thin profile, no height impact
- Available Sizes
Product Models and Size Reference
The model data below comes from the ANGESEN product model list. Dimension order can vary by product type, so the original Size field is preserved. Confirm final specifications, stock status, and customization scope through inquiry.
UFH Panel 4 models · 600x1200x15, 600x1200x16, 600x1200x20, 600x770x30
| MODEL | PRODUCT NAME | SIZE |
|---|---|---|
| AGSUFH15 | UFH Panel | 600x1200x15 |
| AGSUFH16 | UFH Panel | 600x1200x16 |
| AGSUFH20 | UFH Panel | 600x1200x20 |
| AGSS0607 | UFH Panel | 600x770x30 |
Product Selection Guide

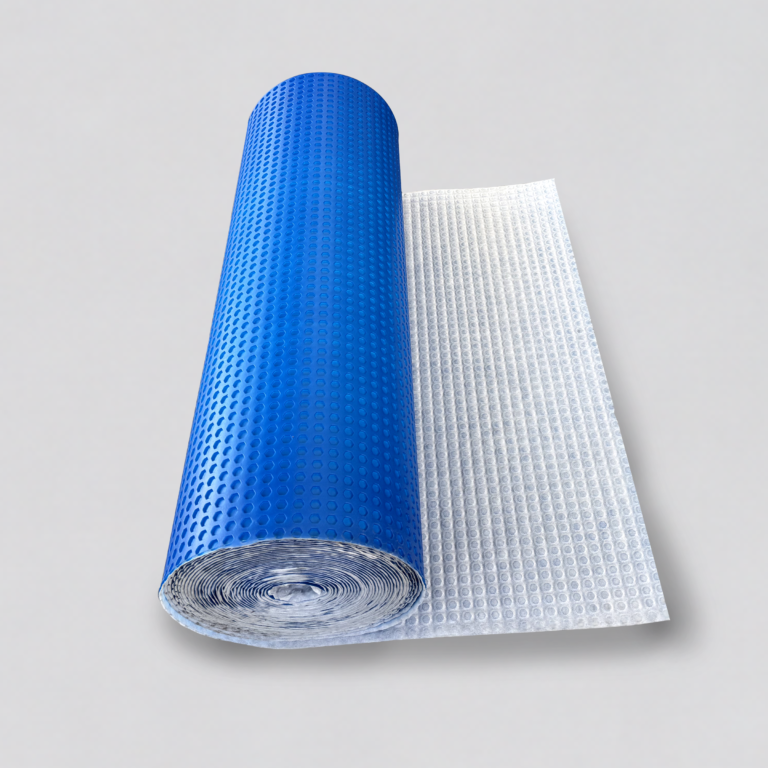

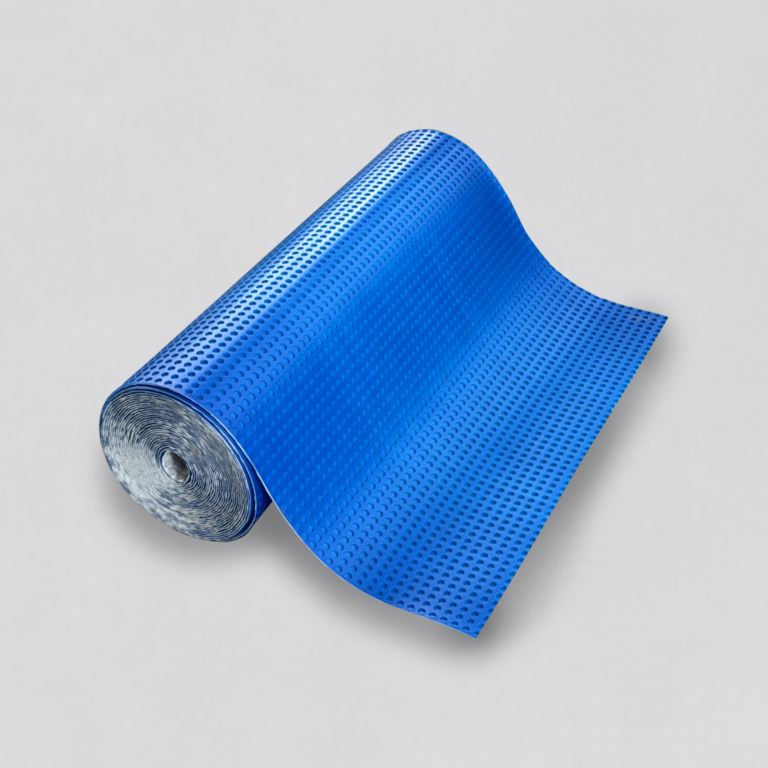

Uncoupling Mat Buying Guide for Heated Floors and Large-Format Tile
How should distributors specify underfloor heating board for tile floor systems?
An uncoupling mat is installed between the tile substrate and tile finish to help manage movement stress in floor assemblies. For distributors, importers, contractors, and builders, it is especially relevant for underfloor heating, large-format tile, exterior-adjacent areas, and projects where crack isolation is part of the floor system planning.
Stress management layer
The mat helps separate tile finish movement from the supporting substrate, reducing the risk that substrate stress transfers directly into the tile surface.
Heated floor compatibility
For underfloor heating programs, the uncoupling mat should be planned together with the heating board, backer board, adhesive system, and tile format.
Large-format tile support
Large-format tile and stone-look panels need flatter, better-planned substrate assemblies because movement and point stress can become more visible in the finished floor.
Distributor category planning
Uncoupling mat gives distributors a floor-system add-on that connects tile backer board, underfloor heating board, waterproofing accessories, and contractor education.
Send your heating system type, routed channel requirement, board thickness, packaging plan, and target market to request an underfloor heating board quotation.
Underfloor Heating Board Questions for B2B Buyers
What is Underfloor Heating Board used for?
Underfloor Heating Board is used in tile and bathroom waterproofing projects where distributors, contractors, builders, and importers need a stable product for wet-area construction, shower systems, and related tile substrate applications.
Can ANGESEN supply waterproof backer board system product for distributors and importers?
Yes. ANGESEN supplies tile backer board, waterproof backer board, XPS backer board, shower tray, and bathroom waterproof system products for building material distributors, tile distributors, importers, wholesalers, and construction supply companies.
Does ANGESEN support OEM or private label packaging?
ANGESEN can discuss OEM packaging, private label presentation, SKU planning, and repeat-order support based on product specifications, order volume, and target market requirements.
What information is needed to request a quote?
For a more accurate quote, provide the target product, thickness or size, quantity, packaging preference, destination market, and whether the order is for wholesale supply, distributor stock, or OEM production.
When should an uncoupling mat be used in a tile floor system?
An uncoupling mat is commonly considered for heated floors, large-format tile, exterior-adjacent floors, and floor assemblies where movement stress or crack isolation needs to be managed before tile installation.
Can ANGESEN supply uncoupling mat together with tile backer board?
Yes. ANGESEN can discuss uncoupling mat together with tile backer board, underfloor heating board, waterproofing accessories, and related bathroom waterproofing system products for distributor or wholesale programs.
What information should buyers provide for an uncoupling mat quote?
Buyers should provide the target application, tile format, required roll or sheet dimensions, packaging preference, estimated quantity, destination market, and whether the order is for wholesale supply, OEM, or distributor stock.
